Torque Test
EquipmentTorque Test Equipment
Instron/ 55MT
Evaluating the exposure of components caused by torsion.
Introduction
The MT Series, a low-capacity, high-precision torsion tester, is an instrument that can test the desired torsion behavior by varying the angle or force applied.
Application
The test can be applied to a wide range of materials, such as wires, fixtures, switches, and spearing, which are commonly used in medical, automotive and aerospace applications. The test is required for products that are subjected to torsion in the process of assembling or handling parts and those exposed to when shocked or vibrated at a fixed state.
The Equipment
Torque Test Equipment
-
- Manufacturer / Model
-
Instron/ 55MT
-
- USE
-
Simulate and test real-torque.
-
- Equipment Spec
-
Max Torque : 22.5 Nm
Max Speed : 60 RPM
Load Accuracy : ± 0.5 %
Test Method
Vibrator amplifiers ranging from 2000kgf to 5000kgf are used to evaluate small semiconductor products and medium to large autonomous modules/systems. The MT Series, a low-capacity, high-precision torsion tester, is an instrument that can test the desired torsion behavior by varying the angle or force applied. The test can be applied to a wide range of materials, such as wires, fixtures, switches, and spearing, which are commonly used in medical, automotive and aerospace applications. The test is required for products that are subjected to torsion in the process of assembling or handling parts and those exposed to when shocked or vibrated at a fixed state.
| FAMTECH / EDS2000-320 | IMV Corp / 250.SA5M | ETS-Solution/ HAV3310.I437 | |
|---|---|---|---|
| Fixed Vibration | 2,000 kgf | 4,000 kgf | 5,000 kgf |
| Random Vibration | 2,000 kgf | 4,000 kgf | 5,000 kgf |
| Max. Displacement | 51 mm | 51 mm | 51 mm |
DATA EXAMPLE

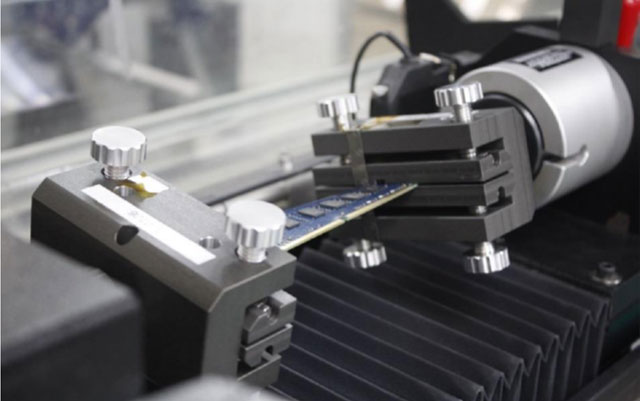

RAM Torque Test

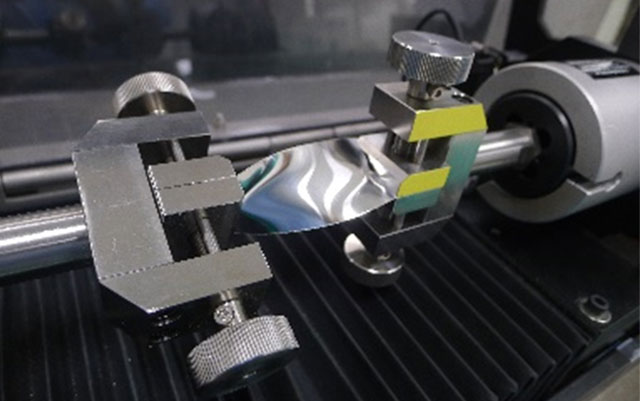

Film-type Torque Test
Technical Use Case
Related Standards
- AEC-Q101
- AEC-Q102
- AEC-Q103
- MIL-STD-202G 201, 204
- ES Series
- GMW Series
