IV Curve Measurement
EquipmentIV Curve Measurement
Equipment used to measure electrical properties of samples and analyze electrical failure modes
Introduction
The Parameter Analyzer device is used to measure the electrical properties of the sample and analyze the Open, Short, and High/Low Leakage failure modes. This equipment can be applied with a maximum voltage of 40V and a current of 100mA. The analysis procedure and equipment to be used are designed based on the electrical failure mode determined by the characteristic measurement. Hence, this is an important analytic consideration before conducting non-destructive or destructive analysis.
Application
IC Discrete & Passive Component Curve Tracing, IV Curve Measurement

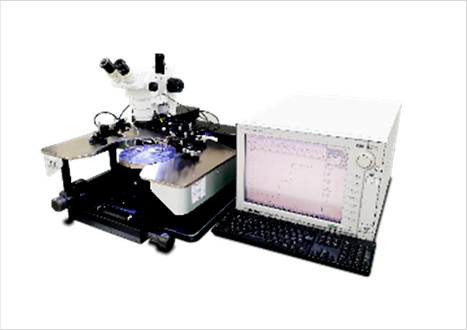

The Equipment
-
- Manufacturer / Model
KEYSIGHT / B1500A
-
- Equipment Spec
-
Max. Input Voltage 40V
Max. Input Current 100mA
Measure Resolution 0.5uV, 10fA
Measure Accuracy 0.01% + 120uV, 0.1% + 200fA
Source Resolution 25uV, 50fA
Source Accuracy 0.018% + 150uV, 0.1% + 300fA
Technical Use Case
Electrical Failure Mode
IV Curve Measurement for Failure Analysis
